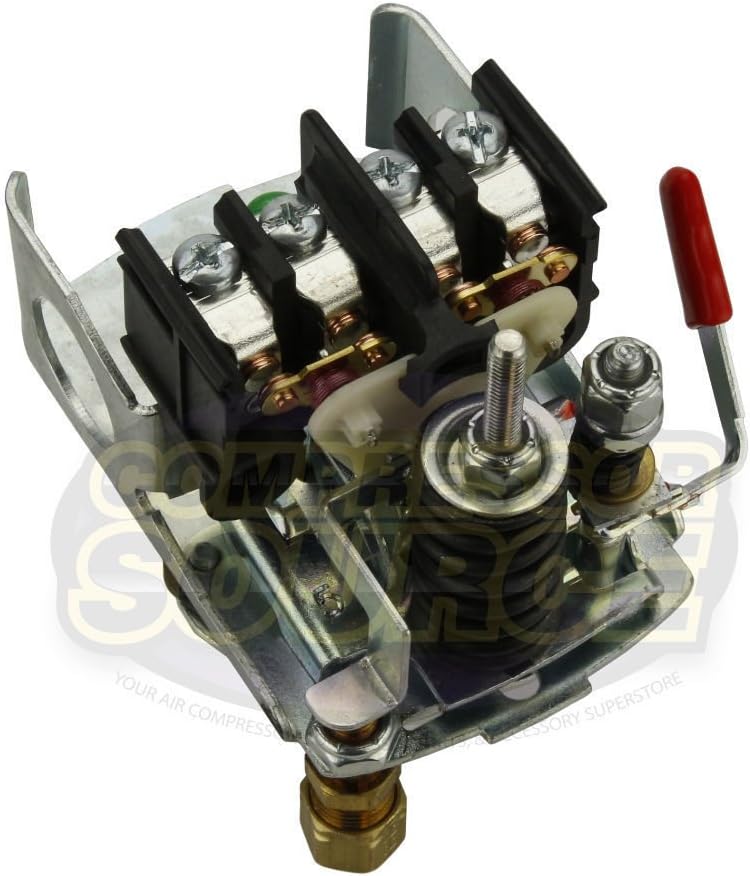

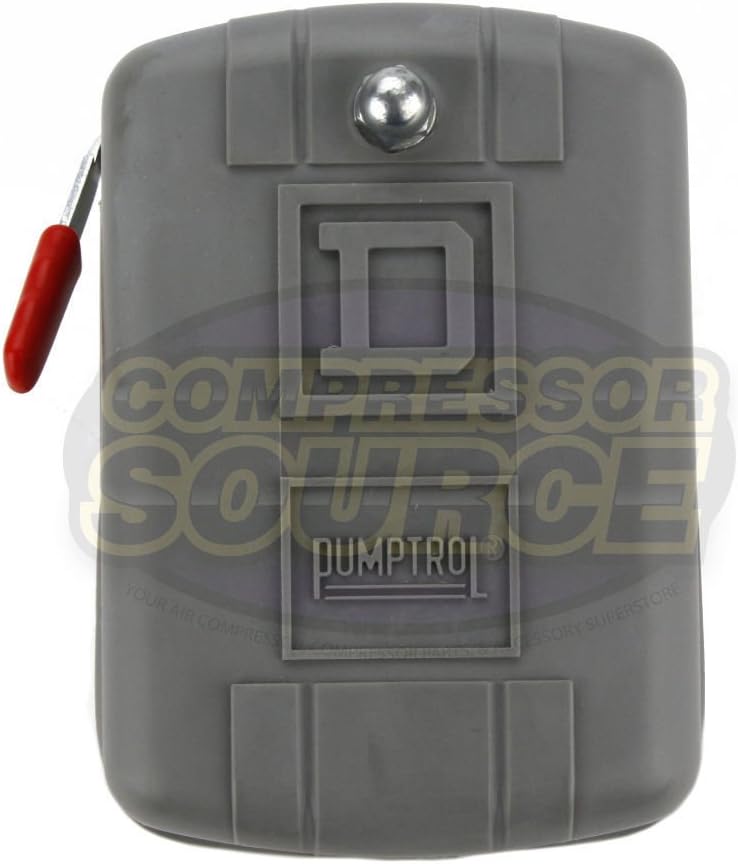

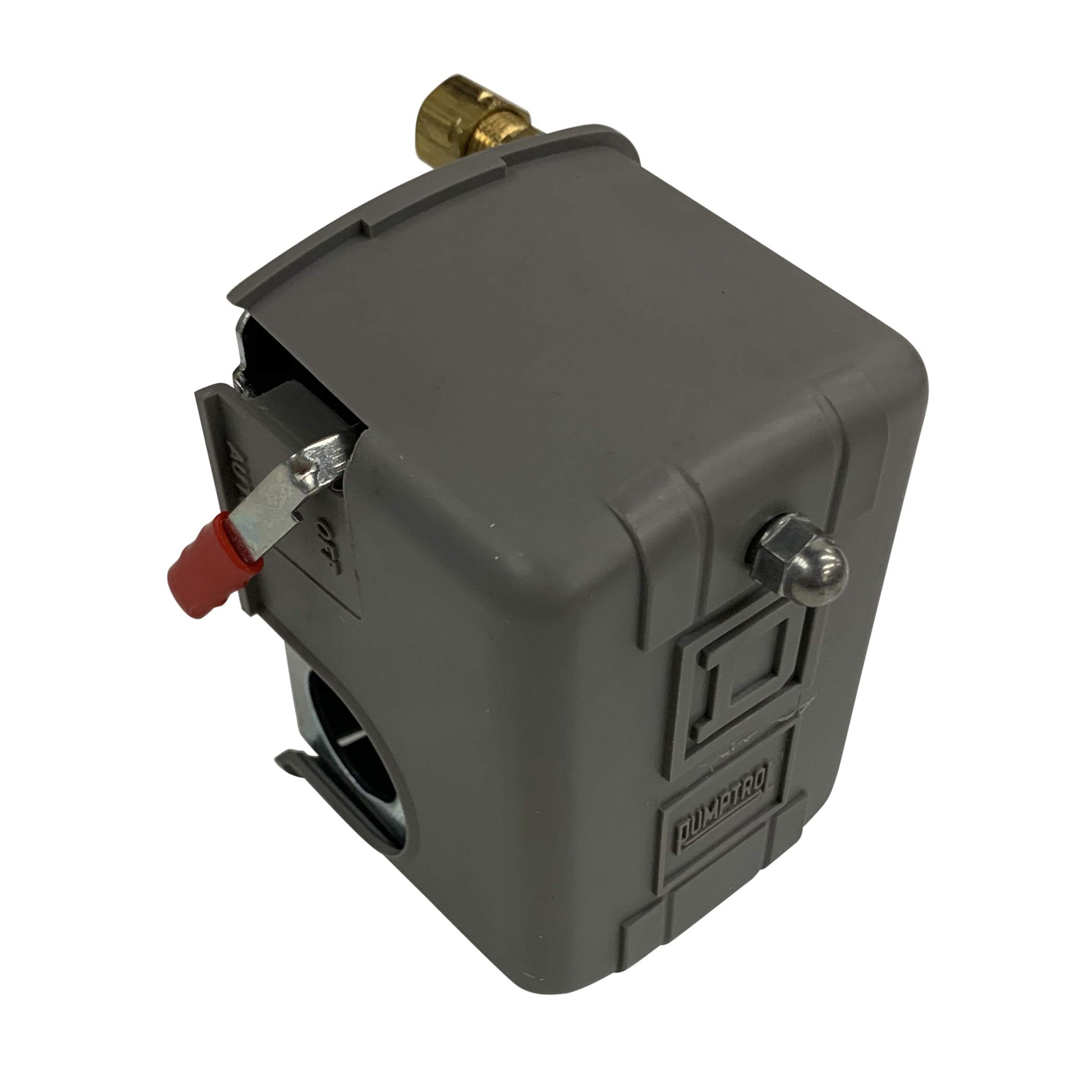

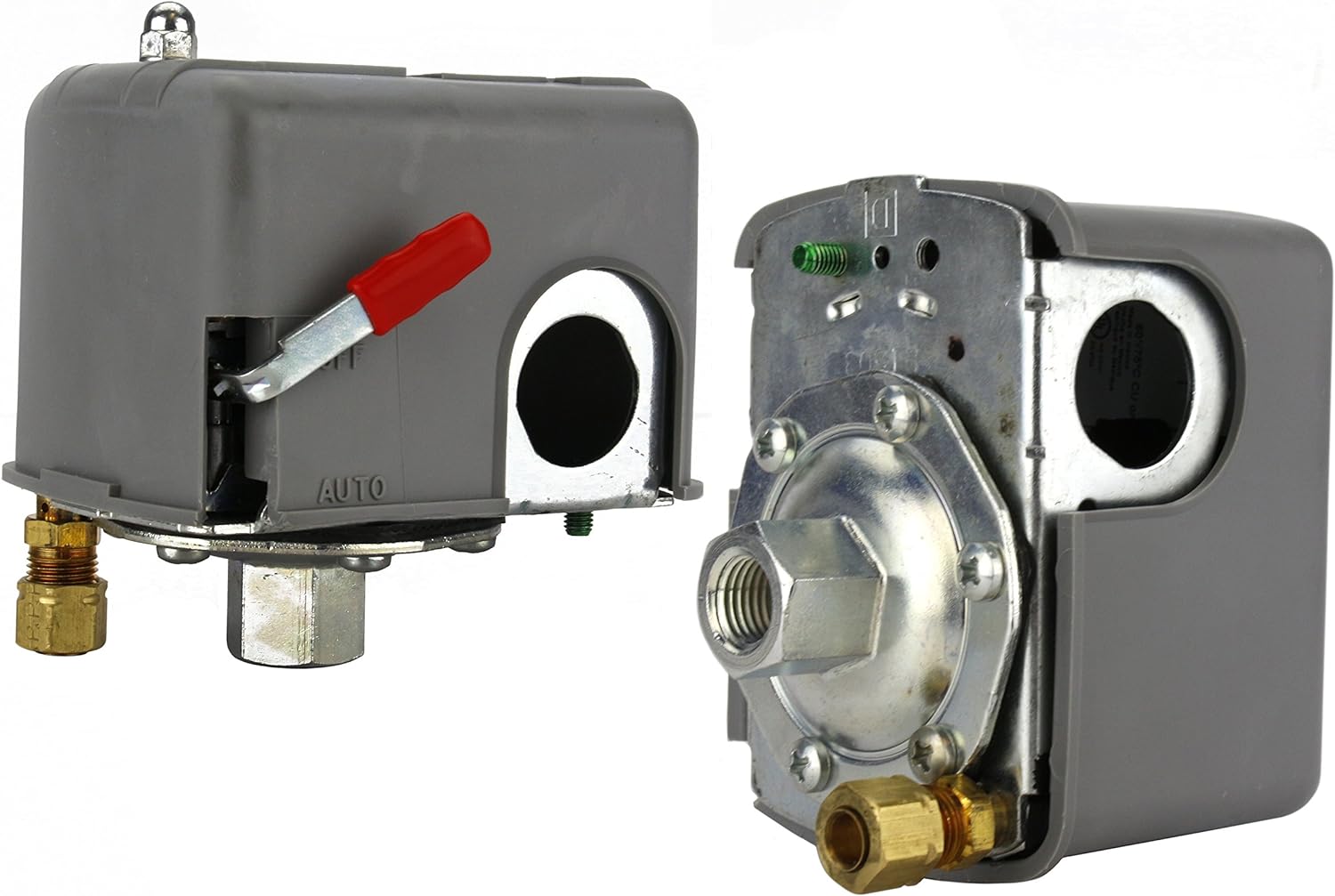

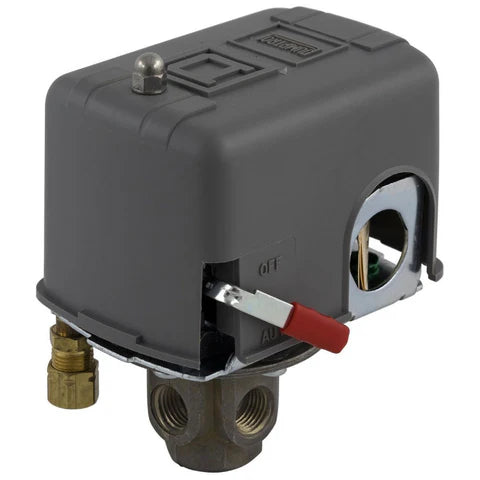

Square D 9013FHG42J59M1X Air-Compressor Switch

Square D 9013FHG42J59M1X Air-Compressor Switch

$49.39 USD
$44.50 USD $49.39 USD
Sale Sold out

Hurry! Only 4 left in stock.

Square D Pumptrol 9013FH Pressure Sensor
Overview: The Square D Pumptrol 9013FH Pressure Sensor is an electromechanical pressure switch designed for reliable control of small electrically driven air compressors. Engineered for durability and precision, this sensor efficiently regulates pressure within a specified range, ensuring optimal performance in various applications.

Technical Specifications:

Pressure Sensor Size: 200 psi
Pressure Settings: Off at 175 psi with an adjustable rising pressure range of 100-200 psi.
Approximate Adjustable Differential: 40 psi
Destruction Pressure: 220 psi
Controlled Fluid: Air (-22...257 °F)
Design Features:

Operation Type: Regulation between two thresholds with a fixed differential scale.
Pressure Actuator: Diaphragm mechanism for reliable operation.
Contacts: 2 NC, snap action, DPST-DB, Form YY.
Cable Entry: Two 0.88 in cable entries with 0.84 in across flats.
Electrical Connection: Screw-clamp terminals with a clamping capacity of 5.261 mm² (10 AWG).
Durability and Materials:

Fluid Connection: 0.25 inch NPSF internal conforming to UL 508.
Materials in Contact with Fluid: Nitrile (Buna-N) or equivalent rubber diaphragm, zinc-plated steel flange, and Noryl thermoplastic resin or equivalent cover.
Electrical Durability: 100,000 cycles at 10 cyc/mn.
Mechanical Durability: 300,000 cycles.
Performance:

Motor Power:
0.75 kW (1 hp) at 575 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 3 phases
1.5 kW (2 hp) at 115 V AC, 3 phases
1.1 kW (1.5 hp) at 115 V AC, 1 phase
1.5 kW (2 hp) at 230 V AC, 1 phase
Operating Rate: 10 cyc/mn
Repeat Accuracy: ±3%
Dimensions:

Weight: 1 lb (US)
Operating Position: Any position
View full details
